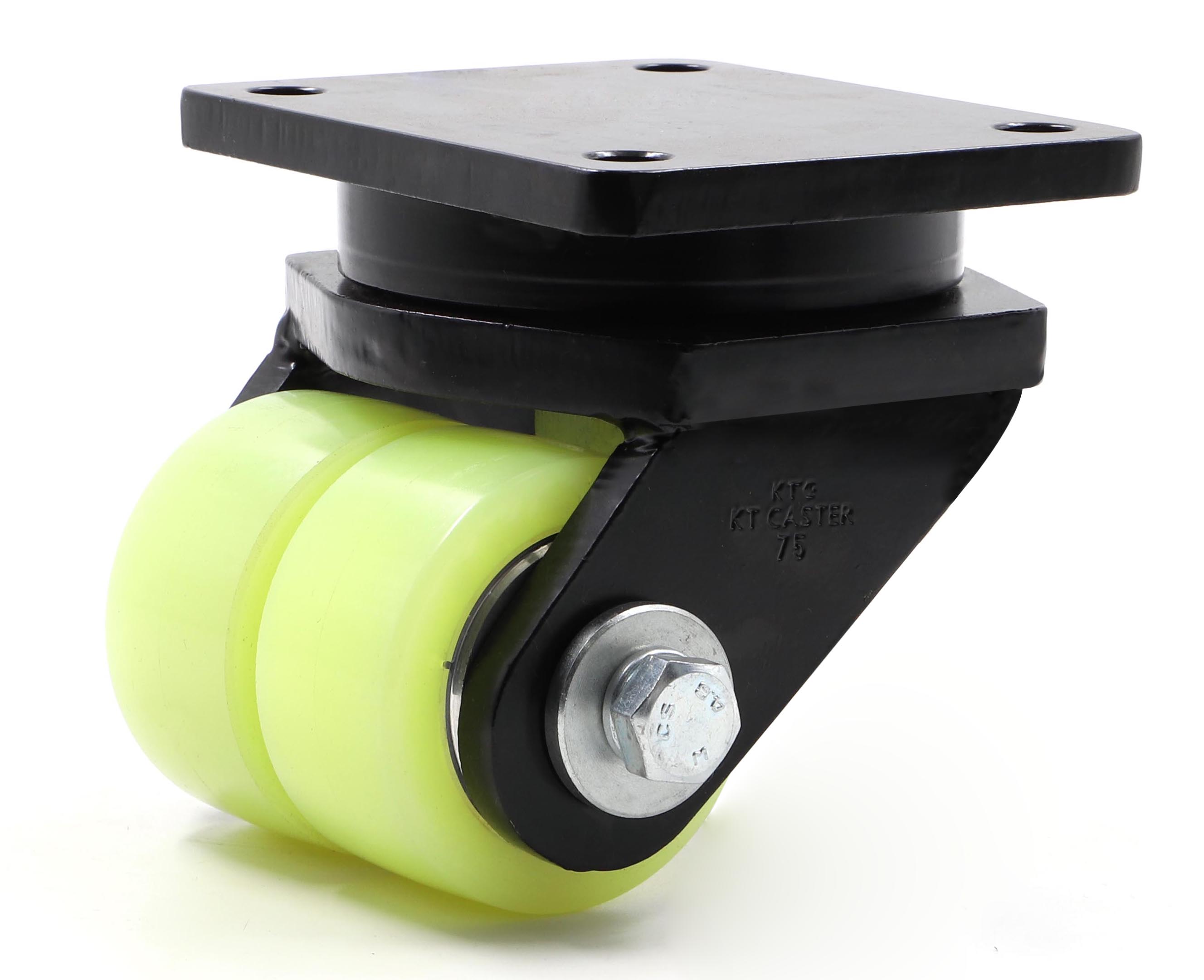

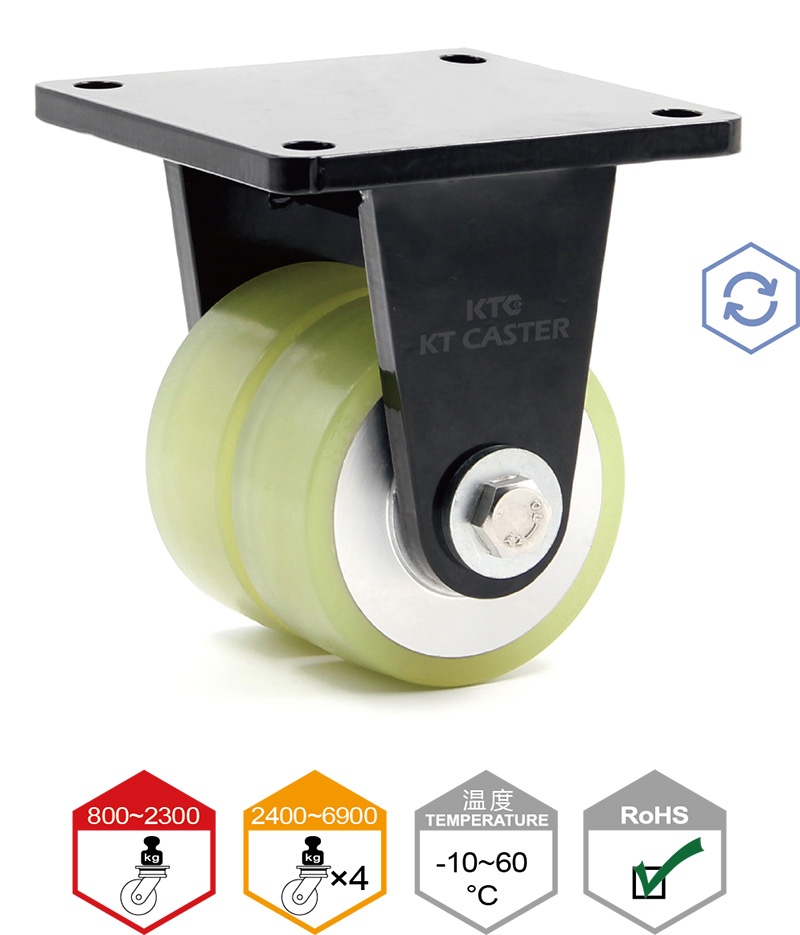

KT-PH40T Precision Heavy Duty Caster Series KT-PH40T-75SF Urethane

Series：

Model： KT-PH40T-75SF KT-PH40T-75RF KT-PH40T-100SF KT-PH40T-100RF KT-PH40T-125SF KT-PH40T-125RF KT-PH40T-150SF KT-PH40T-150RF

texture of material： Urethane Mc Nylon

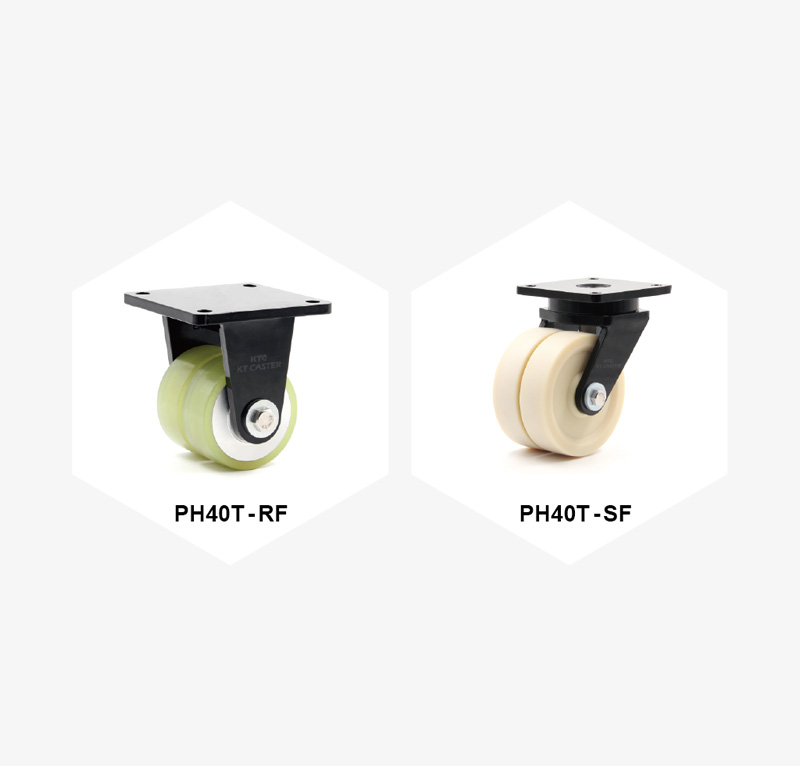

KT-PH40T Precision Heavy Duty Caster Series

Product featuresFEATURES

-Being available for equipment with low-height,low noise&friction, heavy

-load Twin wheel being excellent performance in circling


Scope of applicationAPPLICATION ORDERING CODE
-Being suitable for equipment with height limit, various machinery and equipment。

Model descriptionORDERING CODE


KT - PH40 - SF/RF - M/U


KT

KT Caster

PH

Series

40T

Serial number

SF/RF

SF:Swivel Flange

RF:Rigid  Flange

M/U

M:Mc Nylon


U:Urethane

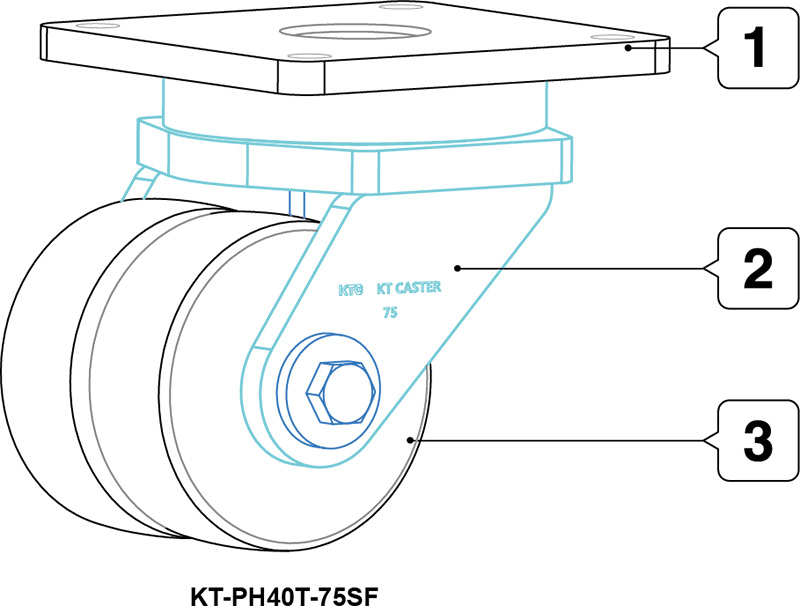

Texture of materialMATERIAL & TREATMENT INFORMATION



Material

Treatment

1、Caster seat

S45C

BlackCoated

2、Body

 S45C

BlackCoated

3、Wheel

AntistaticPolyUrethane+AL
/Mc Nylon

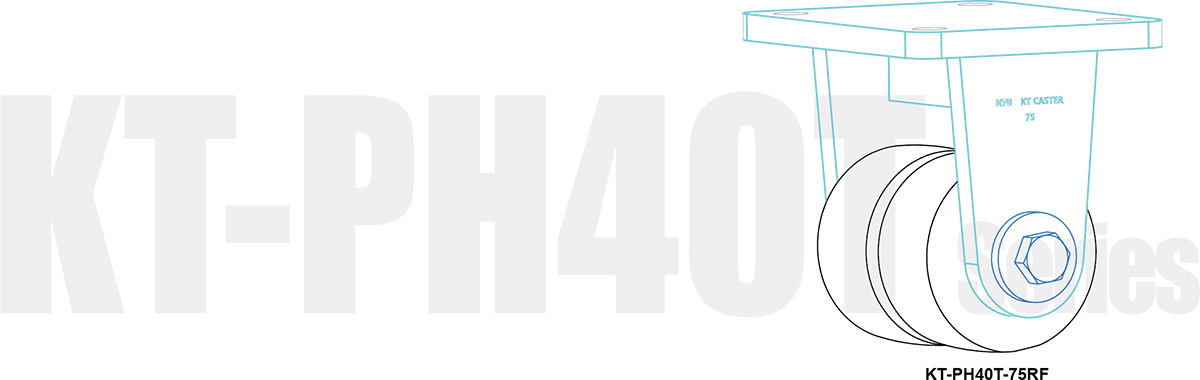

SpecificationsDIMENSION
Unit：mm

MODEL

Wheel

NET

WEIGHT




KG

1EA

4EA

KT-PH40T-75SF/RF-M

McNylon

5.0/3.0

1700

5100

KT-PH40T-75SF/RF-U

Polyurethane

5.1/3.1

800

2400

KT-PH40T-100SF/RF-M

McNylon

5.5/3.9

1900

5700

KT-PH40T-100SF/RF-U

Polyurethane

5.9/4.0

1000

3000

KT-PH40T-125SF/RF-M

McNylon

5.9/4.0

2100

6300

KT-PH40T-125SF/RF-U

Polyurethane

6.7/4.9

1200

3600

KT-PH40T-150SF/RF-M

McNylon

7.0/4.7

2300

6900

KT-PH40T-150SF/RF-U

Polyurethane

7.3/5.0

1400

4200


Unit：mm

MODEL





Ø

W

F

F1

HOLE

KT-PH40T-75SF/RF-M

Ø75

40×2

140×110

105*80

Ø13

KT-PH40T-75SF/RF-U

Ø75

40×2

140×110

105*80

Ø13

KT-PH40T-100SF/RF-M

Ø100

40×2

140x110

105*80

Ø13

KT-PH40T-100SF/RF-U

Ø100

40×2

140x110

105*80

Ø13

KT-PH40T-125SF/RF-M

Ø125

40x2

140x110

105×80

Ø13

KT-PH40T-125SF/RF-U

Ø125

40x2

140x110

105×80

Ø13

KT-PH40T-150SF/RF-M

Ø150

40×2

140×110

105*80

Ø13

KT-PH40T-150SF/RF-U

Ø150

40×2

140×110

105*80

Ø13


Unit：mm

MODEL



H

L

O

KT-PH40T-75SF/RF-M

125

153

45

KT-PH40T-75SF/RF-U

125

153

45

KT-PH40T-100SF/RF-M

150

170

50

KT-PH40T-100SF/RF-U

150

170

50

KT-PH40T-125SF/RF-M

175

188

55

KT-PH40T-125SF/RF-U

175

188

55

KT-PH40T-150SF/RF-M

200

205

60

KT-PH40T-150SF/RF-U

200

205

60



KT - PH40 - SF/RF - M/U


KT

KT Caster

PH

Series

40T

Serial number

SF/RF

SF:Swivel Flange

RF:Rigid  Flange

M/U

M:Mc Nylon


U:Urethane




Material

Treatment

1、Caster seat

S45C

BlackCoated

2、Body

 S45C

BlackCoated

3、Wheel

AntistaticPolyUrethane+AL
/Mc Nylon


Unit：mm

MODEL

Wheel

NET

WEIGHT




KG

1EA

4EA

KT-PH40T-75SF/RF-M

McNylon

5.0/3.0

1700

5100

KT-PH40T-75SF/RF-U

Polyurethane

5.1/3.1

800

2400

KT-PH40T-100SF/RF-M

McNylon

5.5/3.9

1900

5700

KT-PH40T-100SF/RF-U

Polyurethane

5.9/4.0

1000

3000

KT-PH40T-125SF/RF-M

McNylon

5.9/4.0

2100

6300

KT-PH40T-125SF/RF-U

Polyurethane

6.7/4.9

1200

3600

KT-PH40T-150SF/RF-M

McNylon

7.0/4.7

2300

6900

KT-PH40T-150SF/RF-U

Polyurethane

7.3/5.0

1400

4200


Unit：mm

MODEL





Ø

W

F

F1

HOLE

KT-PH40T-75SF/RF-M

Ø75

40×2

140×110

105*80

Ø13

KT-PH40T-75SF/RF-U

Ø75

40×2

140×110

105*80

Ø13

KT-PH40T-100SF/RF-M

Ø100

40×2

140x110

105*80

Ø13

KT-PH40T-100SF/RF-U

Ø100

40×2

140x110

105*80

Ø13

KT-PH40T-125SF/RF-M

Ø125

40x2

140x110

105×80

Ø13

KT-PH40T-125SF/RF-U

Ø125

40x2

140x110

105×80

Ø13

KT-PH40T-150SF/RF-M

Ø150

40×2

140×110

105*80

Ø13

KT-PH40T-150SF/RF-U

Ø150

40×2

140×110

105*80

Ø13


Unit：mm

MODEL



H

L

O

KT-PH40T-75SF/RF-M

125

153

45

KT-PH40T-75SF/RF-U

125

153

45

KT-PH40T-100SF/RF-M

150

170

50

KT-PH40T-100SF/RF-U

150

170

50

KT-PH40T-125SF/RF-M

175

188

55

KT-PH40T-125SF/RF-U

175

188

55

KT-PH40T-150SF/RF-M

200

205

60

KT-PH40T-150SF/RF-U

200

205

60


· 2D图下载

KT-PH40T-75SF-2D KT-PH40T-100SF-2D KT-PH40T-100RF-2D KT-PH40T-125SF-2D KT-PH40T-125RF-2D KT-PH40T-150SF-2D

· 3D图下载

KT-PH40T-75SF-3D KT-PH40T-75RF-3D KT-PH40T-100SF-3D KT-PH40T-100RF-3D KT-PH40T-125SF-3D KT-PH40T-125RF-3D KT-PH40T-150SF-3D KT-PH40T-150RF-3D
