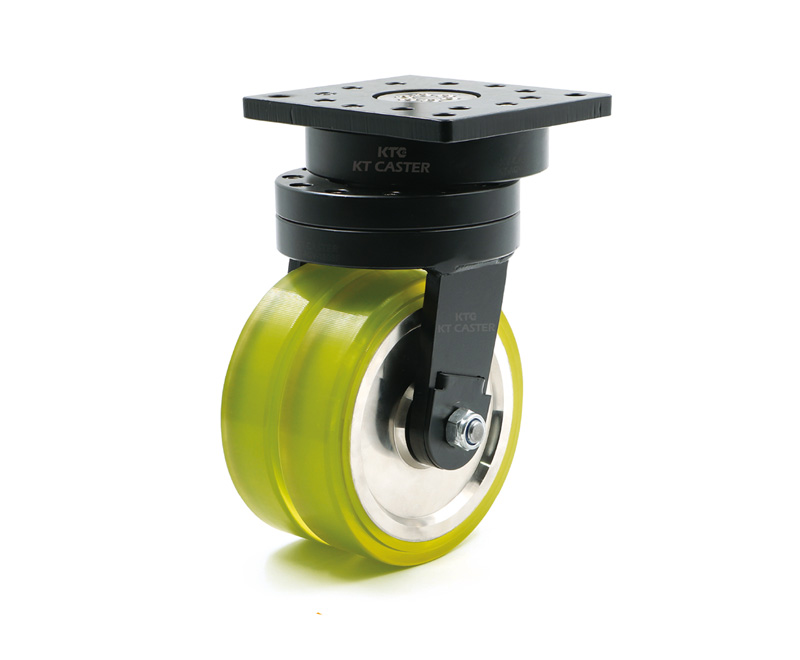

KT-AGV1 Precision Heavy Duty Caster Series KT-AGV1-100SF Urethane

Series：

Model： KT-AGV1-100SF KT-AGV1-125SF KT-AGV1-150SF KT-AGV1-100TSF KT-AGV1-125TSF KT-AGV1-150TSF

texture of material： Urethane

Functional features

Model description

Texture of material

Specification parameters

Related downloads

KT-AGV1 Precision Heavy Duty Caster Series

Product featuresFEATURES

-Equipment with more than 4 casters and evenly distributed load
-High duty equipment or carriage that needs absorbing shock

Scope of applicationAPPLICATION ORDERING CODE

-Automatic guide vehicle

-High duty transport carriage

Model descriptionORDERING CODE

KT - AGV1 - 110SF - U

KT	KT Caster
AGV1	Series
110	Serial number
SF	SF: Swivel Flange
U	U :Urethane

Texture of materialMATERIAL & TREATMENT INFORMATION

	Material	Treatment
1、Caster seat	S45C	Black Coated
2、Body	S45C	Black Coated
3、Wheel	Antistatic Poly Urethane +S45C	NI

SpecificationsDIMENSION

Unit：mm

MODEL	NET WEIGHT
MODEL	KG	1EA	4EA	W	Ø
KT-AGV1-100SF	6.5	400	1200	46	Ø100
KT-AGV1-125SF	7.8	600	1800	46	Ø125
KT-AGV1-150SF	9.7	800	2400	46	Ø150
KT-AGV1-100TSF	6.8	400	1200	29×2	Ø100
KT-AGV1-125TSF	8.1	600	1800	29x2	Ø125
KT-AGV1-150TSF	10	800	2400	29×2	Ø150

Unit：mm

MODEL
MODEL	F	F1	HOLE
KT-AGV1-100SF	112x112	88×88	Ø9
KT-AGV1-125SF	112x112	88×88	Ø9
KT-AGV1-150SF	112x112	88×88	Ø9
KT-AGV1-100TSF	112x112	88*88	Ø9
KT-AGV1-125TSF	112x112	88x88	Ø9
KT-AGV1-150TS	112x112	88×88	Ø9

Unit：mm

MODEL
MODEL	H	O
KT-AGV1-100SF	170-10	35~39
KT-AGV1-125SF	196-10	47~51
KT-AGV1-150SF	222-10	61~65
KT-AGV1-100TSF	170-10	35~39
KT-AGV1-125TSF	196-10	47~51
KT-AGV1-150TS	222-10	61~65

KT - AGV1 - 110SF - U

KT	KT Caster
AGV1	Series
110	Serial number
SF	SF: Swivel Flange
U	U :Urethane

	Material	Treatment
1、Caster seat	S45C	Black Coated
2、Body	S45C	Black Coated
3、Wheel	Antistatic Poly Urethane +S45C	NI

Unit：mm

MODEL	NET WEIGHT
MODEL	KG	1EA	4EA	W	Ø
KT-AGV1-100SF	6.5	400	1200	46	Ø100
KT-AGV1-125SF	7.8	600	1800	46	Ø125
KT-AGV1-150SF	9.7	800	2400	46	Ø150
KT-AGV1-100TSF	6.8	400	1200	29×2	Ø100
KT-AGV1-125TSF	8.1	600	1800	29x2	Ø125
KT-AGV1-150TSF	10	800	2400	29×2	Ø150

Unit：mm

MODEL
MODEL	F	F1	HOLE
KT-AGV1-100SF	112x112	88×88	Ø9
KT-AGV1-125SF	112x112	88×88	Ø9
KT-AGV1-150SF	112x112	88×88	Ø9
KT-AGV1-100TSF	112x112	88*88	Ø9
KT-AGV1-125TSF	112x112	88x88	Ø9
KT-AGV1-150TS	112x112	88×88	Ø9

Unit：mm

MODEL
MODEL	H	O
KT-AGV1-100SF	170-10	35~39
KT-AGV1-125SF	196-10	47~51
KT-AGV1-150SF	222-10	61~65
KT-AGV1-100TSF	170-10	35~39
KT-AGV1-125TSF	196-10	47~51
KT-AGV1-150TS	222-10	61~65
