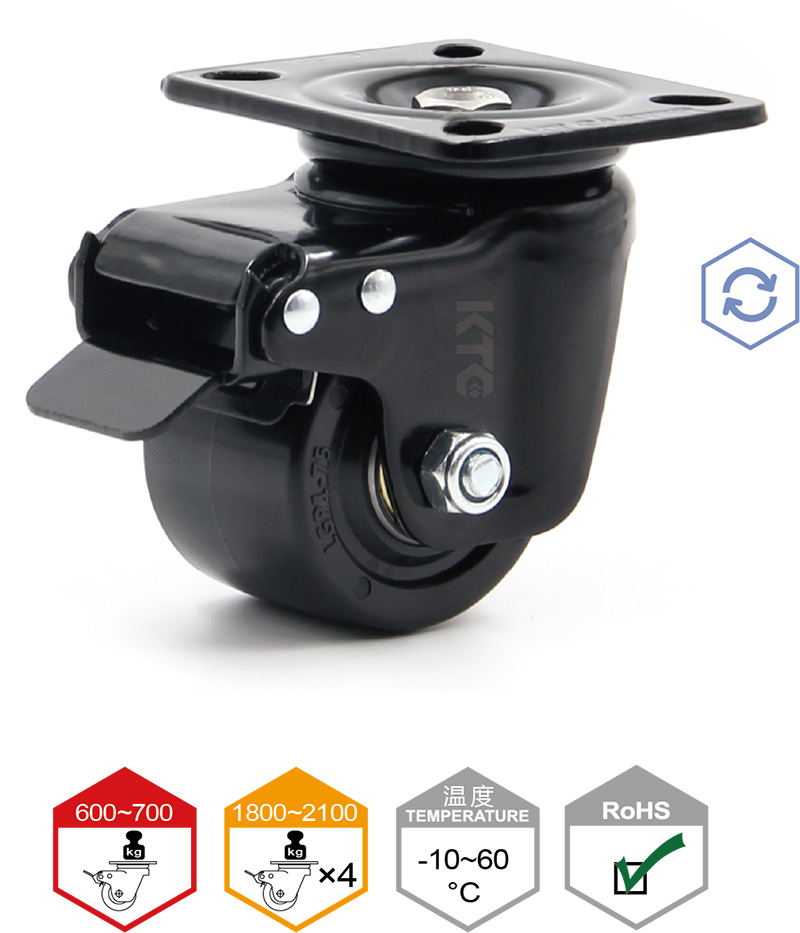

KT-LGP1 Low Gravity Caster Series KT-LGP1-63SF PA6

Series：

Model： KT-LGP1-63SF KT-LGP1-75SF KT-LGP1-63RF KT-LGP1-75RF KT-LGP1-63SFB KT-LGP1-75SFB

texture of material： PA6

Functional features

Model description

Texture of material

Specification parameters

Related downloads

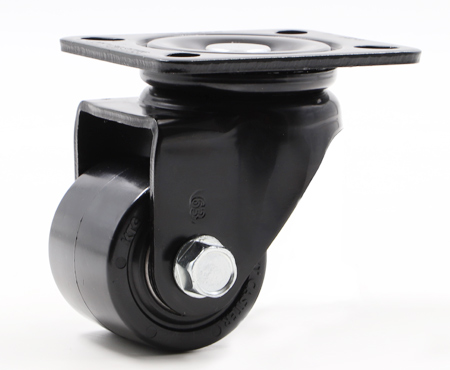

KT-LGP1 Low Gravity Caster Series

Product featuresFEATURES

-Excellent performance in rotation & rolling by inside ball bearing

-No deformation of the wheel in spite of long time load. Less

pollution dueto using wheel cover

Scope of applicationAPPLICATION ORDERING CODE

Semiconductor manufacturing equipment, Display manufacturing equipment,Packaging machinery
Processing equipment, Variable production equipment, Aluminum profile frames, etc.

Model descriptionORDERING CODE

KT	KT Caster
LGP1	Series
63	Serial number
SF/RF/SFB	SF: Swivel Flange
	RF: Rigid Flange
	SFB: Swivel Flange Brake
M/U/Blank	M:Mc Nylon
	U:Urethane
	Nylon6

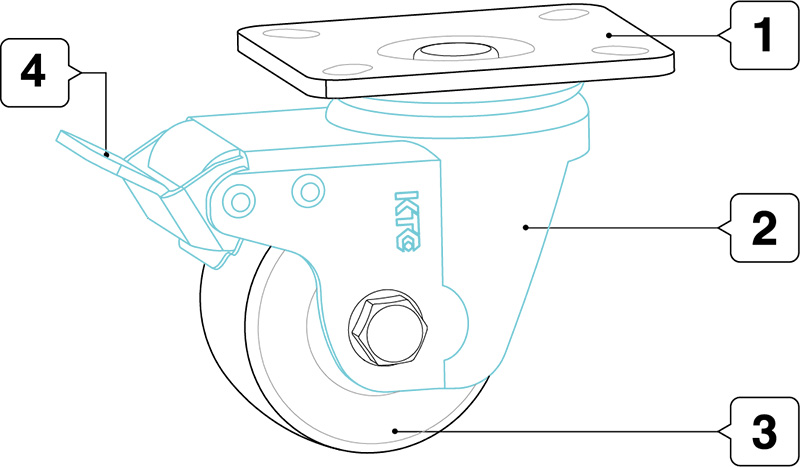

Texture of materialMATERIAL & TREATMENT INFORMATION

	Material	Treatment
1、Caster seat	SPC	Black Coated/Zn Galvanized
2、Body	SPC	Black Coated/Zn Galvanized
3、Wheel	PA6	Black
4、Brake	SPC	Black Coated/Zn Galvanized

SpecificationsDIMENSION

Unit：mm

MODEL	NET WEIGHT
MODEL	KG	1EA	4EA	W	Ø
KT-LGP1-63SF	1.35	600	1800	50	Ø63
KT-LGP1-75SF	1.36	700	2100	50	Ø75

Unit：mm

MODEL
MODEL	F	F1	F2	HOLE
KT-LGP1-63SF	103*85	80x60	73x53	Ø11
KT-LGP1-75SF	103x85	80x60	73x53	Ø11

Unit：mm

MODEL
MODEL	H	L	O
KT-LGP1-63SF	96	100.5	26.5
KT-LGP1-75SF	108	119.5	30.5

Unit：mm

MODEL	NET WEIGHT
MODEL	KG	1EA	4EA	Ø	W
KT-LGP1-63RF	0.96	600	1800	Ø63	50
KT-LGP1-75RF	1.03	700	2100	Ø75	50

Unit：mm

MODEL
MODEL	F	F1	F2	HOLE
KT-LGP1-63RF	103x85	80×60	73x53	Ø11
KT-LGP1-75RF	103*85	80*60	73*53	Ø11

Unit：mm

MODEL
MODEL	H	L	O
KT-LGP1-63RF	96	-	-
KT-LGP1-75RF	108	-	-

Unit：mm

MODEL	MODEL
MODEL	KG	1EA	4EA	W	Ø
KT-LGP1-63SFB	1.53	600	1800	50	Ø63
KT-LGP1-75SFB	1.66	700	2100	50	Ø75

Unit：mm

MODEL
MODEL	F	F1	F2	HOLE
KT-LGP1-63SFB	103*85	80×60	73*53	Ø11
KT-LGP1-75SFB	103*85	80x60	73*53	Ø11

Unit：mm

MODEL
MODEL	H	L	O
KT-LGP1-63SFB	96	150	26.5
KT-LGP1-75SFB	108	160	30.5

KT	KT Caster
LGP1	Series
63	Serial number
SF/RF/SFB	SF: Swivel Flange
	RF: Rigid Flange
	SFB: Swivel Flange Brake
M/U/Blank	M:Mc Nylon
	U:Urethane
	Nylon6

	Material	Treatment
1、Caster seat	SPC	Black Coated/Zn Galvanized
2、Body	SPC	Black Coated/Zn Galvanized
3、Wheel	PA6	Black
4、Brake	SPC	Black Coated/Zn Galvanized

Unit：mm

MODEL	NET WEIGHT
MODEL	KG	1EA	4EA	W	Ø
KT-LGP1-63SF	1.35	600	1800	50	Ø63
KT-LGP1-75SF	1.36	700	2100	50	Ø75

Unit：mm

MODEL
MODEL	F	F1	F2	HOLE
KT-LGP1-63SF	103*85	80x60	73x53	Ø11
KT-LGP1-75SF	103x85	80x60	73x53	Ø11

Unit：mm

MODEL
MODEL	H	L	O
KT-LGP1-63SF	96	100.5	26.5
KT-LGP1-75SF	108	119.5	30.5

Unit：mm

MODEL	NET WEIGHT
MODEL	KG	1EA	4EA	Ø	W
KT-LGP1-63RF	0.96	600	1800	Ø63	50
KT-LGP1-75RF	1.03	700	2100	Ø75	50

Unit：mm

MODEL
MODEL	F	F1	F2	HOLE
KT-LGP1-63RF	103x85	80×60	73x53	Ø11
KT-LGP1-75RF	103*85	80*60	73*53	Ø11

Unit：mm

MODEL
MODEL	H	L	O
KT-LGP1-63RF	96	-	-
KT-LGP1-75RF	108	-	-

Unit：mm

MODEL	MODEL
MODEL	KG	1EA	4EA	W	Ø
KT-LGP1-63SFB	1.53	600	1800	50	Ø63
KT-LGP1-75SFB	1.66	700	2100	50	Ø75

Unit：mm

MODEL
MODEL	F	F1	F2	HOLE
KT-LGP1-63SFB	103*85	80×60	73*53	Ø11
KT-LGP1-75SFB	103*85	80x60	73*53	Ø11

Unit：mm

MODEL
MODEL	H	L	O
KT-LGP1-63SFB	96	150	26.5
KT-LGP1-75SFB	108	160	30.5

· 2D图下载

KT-LGP1-63SF-2D KT-LGP1-63RF-2D KT-LGP1-63SFB-2D KT-LGP1-75SF-2D KT-LGP1-75RF-2D KT-LGP1-75SFB-2D

· 3D图下载

KT-LGP1-63SF-3D KT-LGP1-63RF-3D KT-LGP1-63SFB-3D KT-LGP1-75SF-3D KT-LGP1-75RF-3D KT-LGP1-75SFB-3D
